Sidewinder Header / Manifold

$1200 +shipping

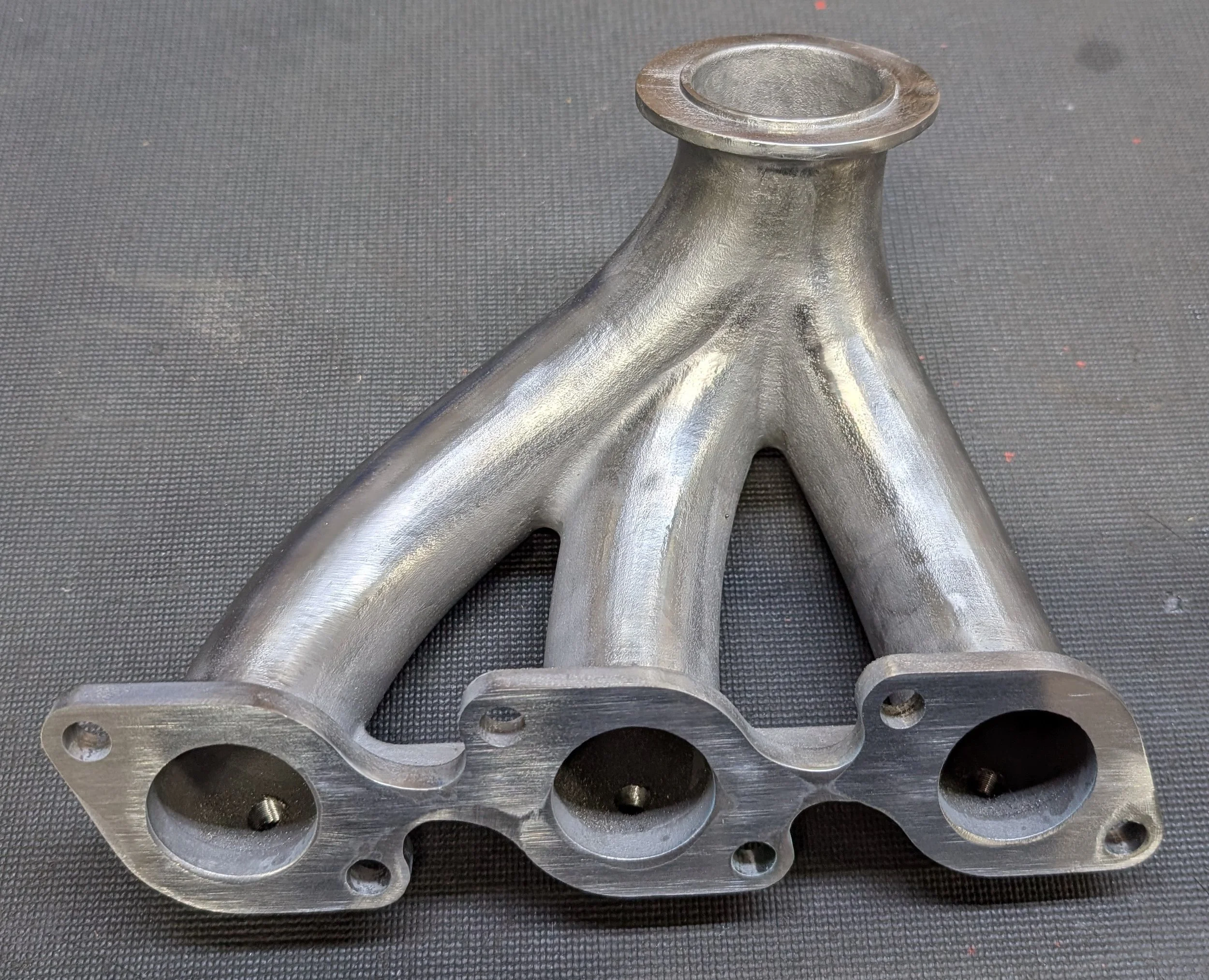

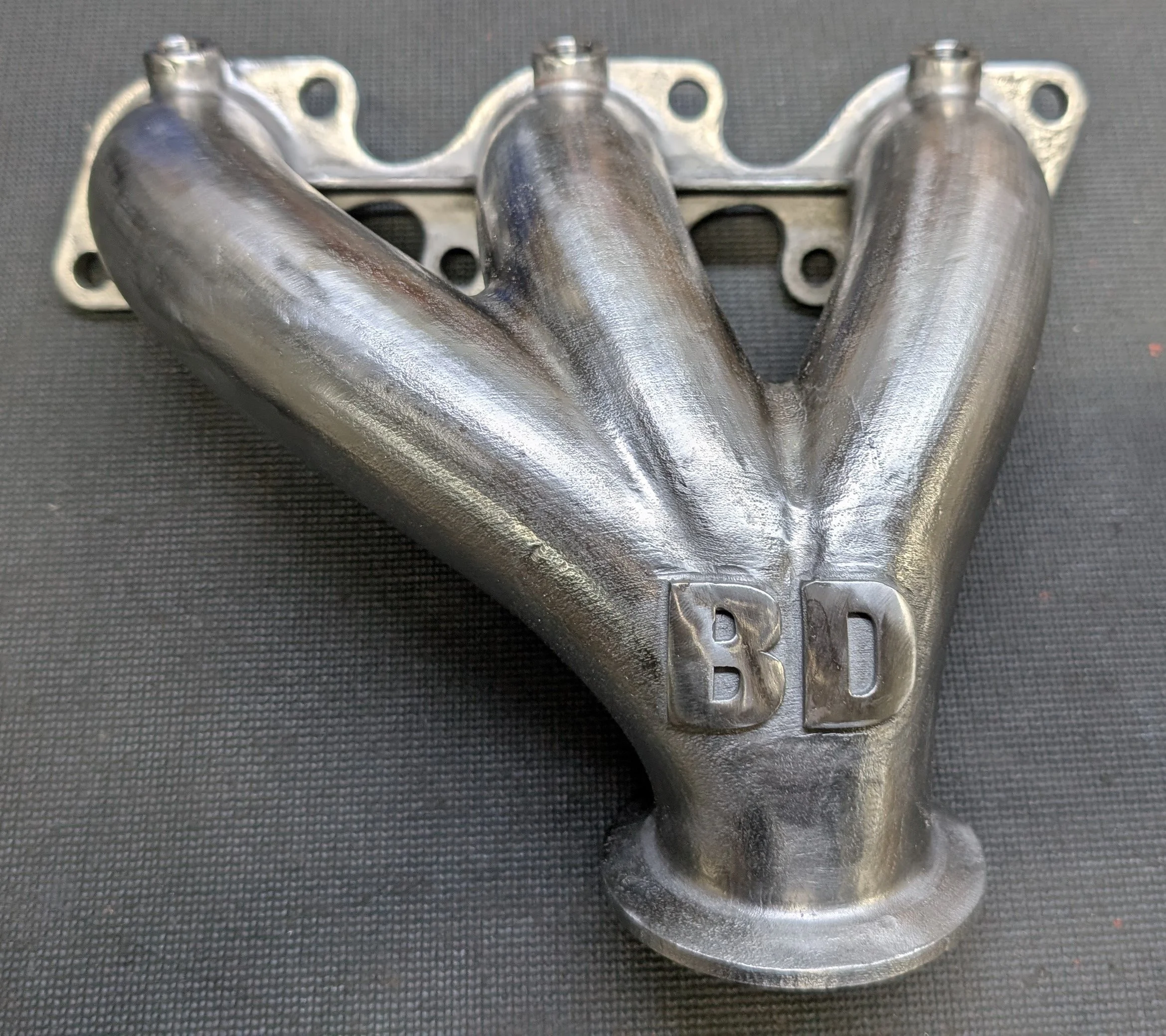

316L Stainless, 3mm wall / Schedule 10, Incorporated V-Band & 1/8 NPT EGT Bungs. Flange is surface ground flat. 4.83lbs.

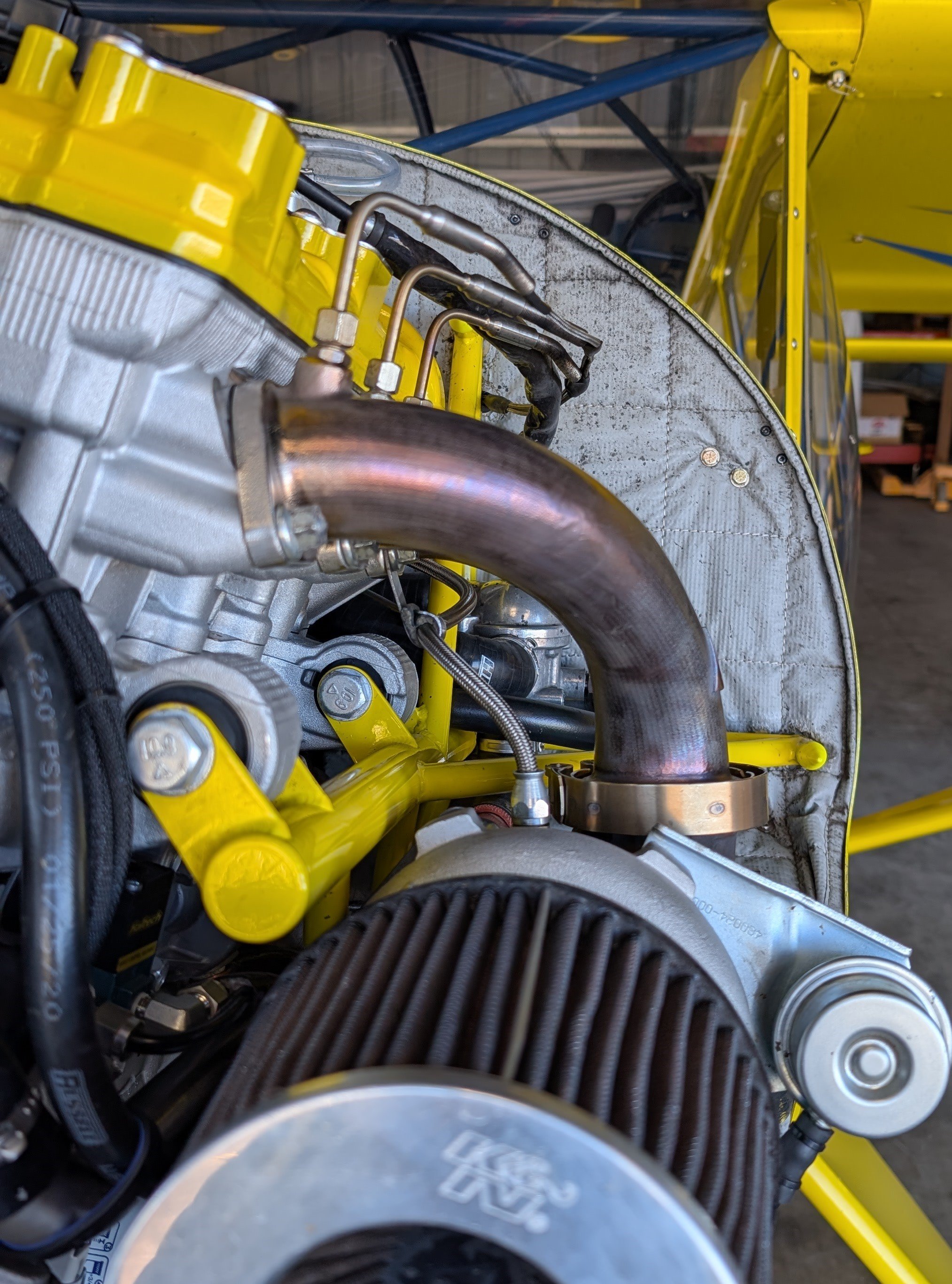

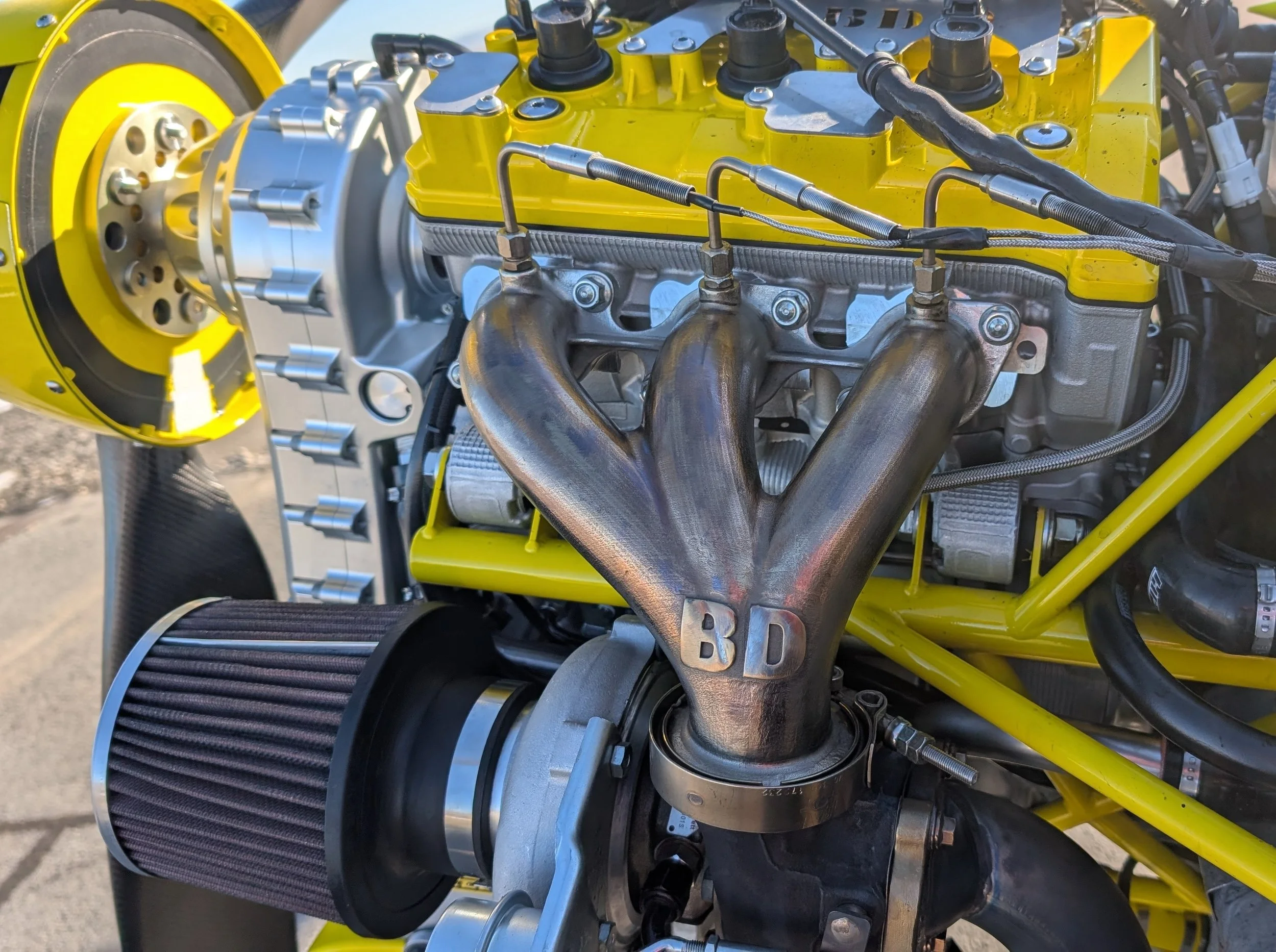

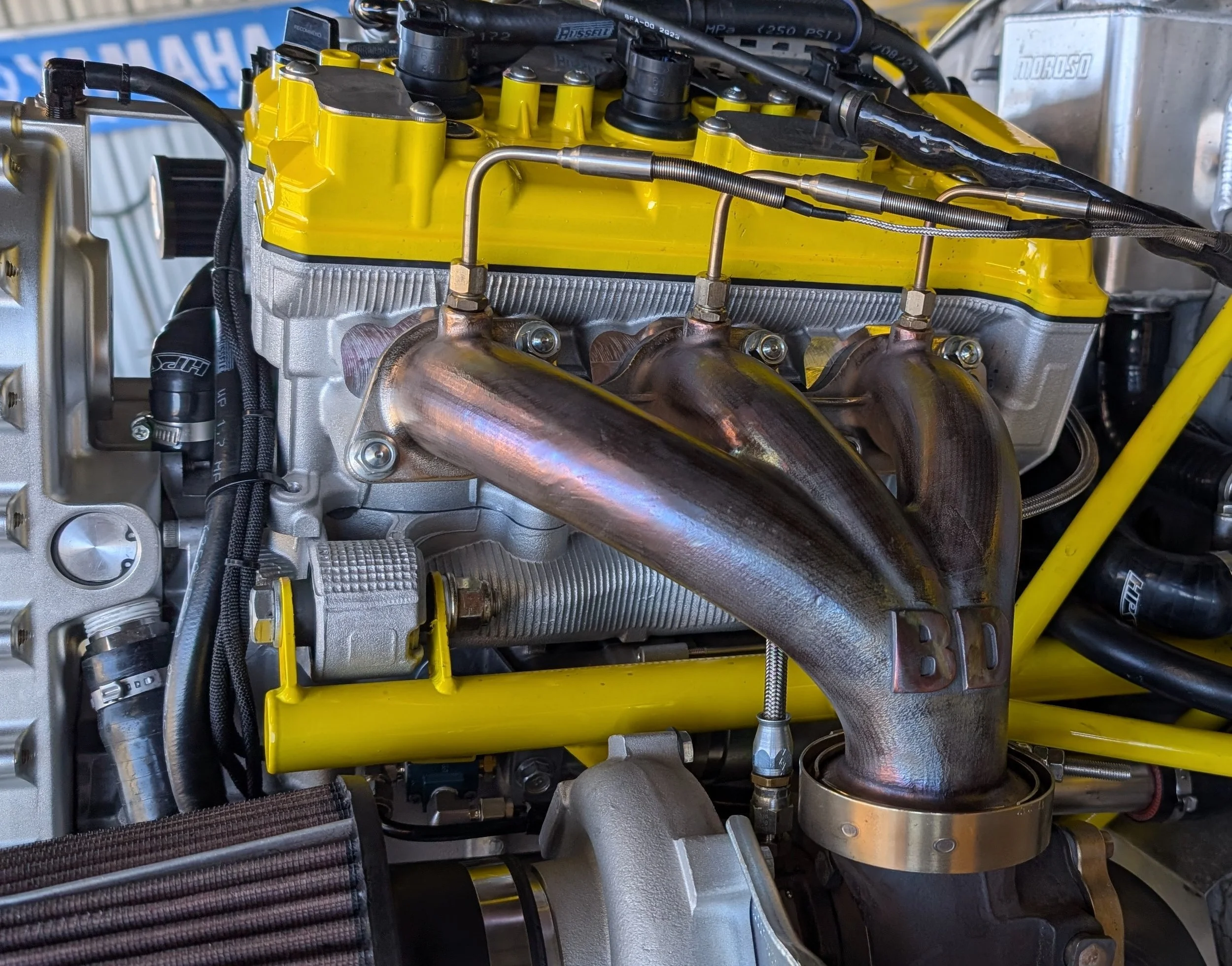

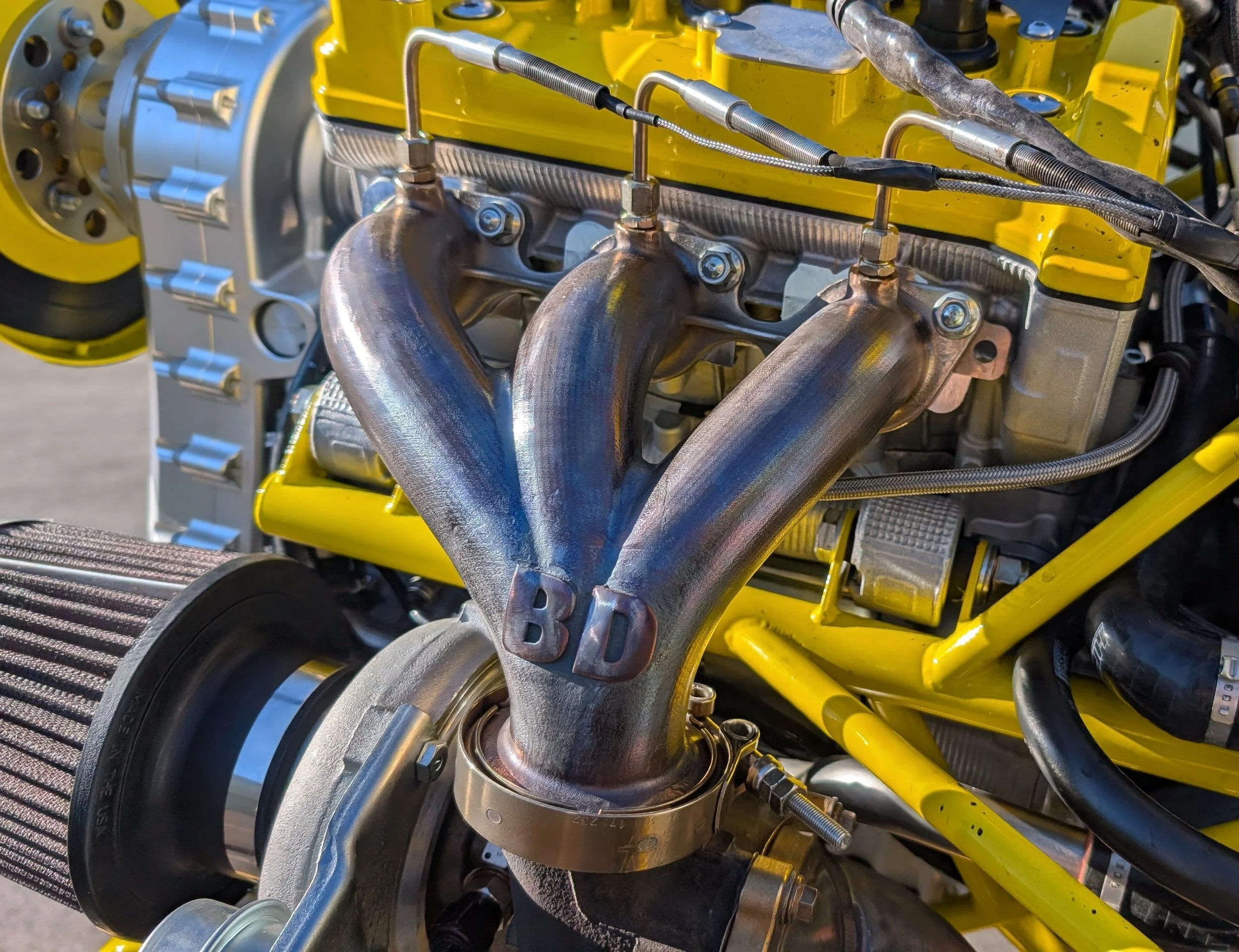

For use with turbos mounted on “hot / exhaust” side of engine. Strong enough to support weight of turbo. Centers turbo between cylinders 2 & 3 Leaving enough room for a decent size air cleaner without hitting prop with no spacer.

Designed originally for the Garrett GTX2860R turbo with V-Band flange and incorporated Wastegate. But could be used with any turbo utilizing this size V-band inlet flange. I am willing to offer this design with alternate inlet turbo flanges and / or an additional V-band for an external wastegate. Contact me for info.

PURCHASE FORM

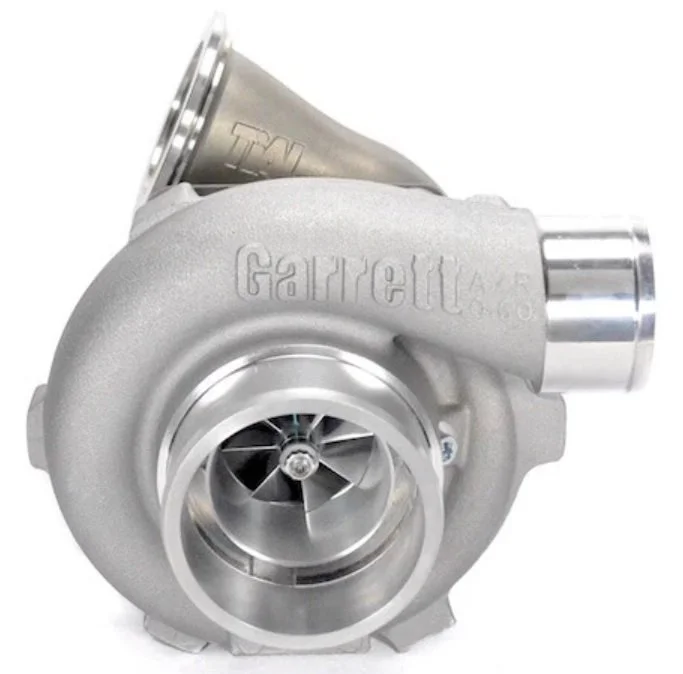

This is the Garrett Turbo used for this setup. All components can be purchased through ATP Turbo with part numbers listed.

  • GRT-TBO-893 GEN2 - Garrett GTX2860R Turbo with .64 A/R Int W/G VB25 Entry Garrett Tbn Hsg, 1 Bar Actuator 1 $2,098.06

  • ATP-FTG-012 Fitting, Metric 14mm to -6AN, Male to Male (For coolant or oil) GT/GTX28 30 35 G Series 2 $14.95 $29.90

  • ATP-OIL-021 -4 size Oil inlet fitting for GT28 GTX28 GT30 GTX30 GT35R G25 G30 G35 w/ built-in .035" RESTRICTOR 1 $12.00

  • ATP-FLA-010 Aluminum - Oil Drain ( return ) Flange (GT25, GT28, GTX28, GTX29, GT30, GTX30, GT35, GTX35, T25, T28 1 $13.95

  • GRT-GSK-008 Oil Drain ( Return ) Flange Gasket - GT GTX Series GT25 through GTX35 and G25 G30 G35 1 $3.00

  • CLC-CLA-025 Tial Stainless V-band CLAMP, Turbine inlet (MANIFOLD SIDE) V-Band Housing GT/GTX28 GT/GTX30 GT/GTX35 1 $48.00

  • ATP-FLS-088 Discharge Flange, GT25R/GT28R/GT28RS/GT3071R-WG, Stainless Steel 1 $24.00

  • ATP-GSK-016 Gasket, 5-Bolt for Garrett T25 Flanged GT28 GTX28/2930R-WG Turbine Housings 1 $6.95
